一、彈簧微啟封閉式安全閥 產品概述
本公司的A41H彈簧微啟封閉式安全閥適用于工作溫度≤300℃的石油氣、空氣、水等介質的設備或管路上。A41Y-P/R型彈簧微啟封閉式安全閥適用于工作溫度≤200℃有腐蝕性介質的設備或管路上，作為超壓保護裝置。彈簧微啟封閉式安全閥連接法蘭標準按JB/T……94/系列1。
|
|
|---|---|

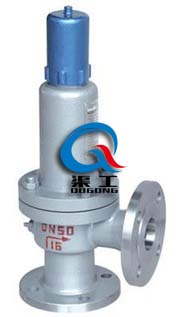

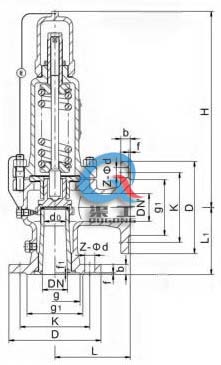

| A41H彈簧微啟封閉式安全閥 | A41H彈簧微啟封閉式安全閥 (外形結構尺寸) |
二、彈簧微啟封閉式安全閥 主要零件材料
| NO | 零件名稱 | A41H-C/KA41Y-C材料 | A41Y-P/KA41Y-P材料 | A41Y-R/KA41Y-R材料 |
|---|---|---|---|---|
| 1 | 閥體 | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 2 | 閥座 | ZG2Cr13/1Cr18Ni9Ti | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 3 | 調節圈 | ZG2Cr13/1Cr18Ni9Ti | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 4 | 閥瓣 | 2Cr13/1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 5 | 導向套 | ZG2Cr13/1Cr18Ni9Ti | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 6 | 閥蓋 | ZG230-450 | ZG230-450 | ZG230-450 |
| 7 | 彈簧 | 50CrVA | 50CrVA包覆氟塑料 | 50CrVA包覆氟塑料 |
| 8 | 閥桿 | 2Cr13 | 2Cr13 | 1Cr18Ni12Mo2Ti |
| 9 | 調整螺桿 | 45 | 2Cr13 | 2Cr13 |
| 10 | 保護罩 | ZG200-400 | ZG200-400 | ZG200-400 |
| 零件名稱 | A41H-C/KA41Y-C材料 | A41Y-P/KA41Y-P材料 | A41Y-R/KA41Y-R材料 |
三、彈簧微啟封閉式安全閥 連接尺寸
| 型號 | 公稱通徑 | do | D | K | g | g1 | b | f | f1 | Z-?d | DN' | D1 | K1 | g2 | g' | b1 | f' | f1' | Z1-?d1 | L | L1 | ≈H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41H-16C A41Y-16P A41Y-16R KA41Y-16C KA41Y-16P |
20 | 15 | 105 | 75 | / | 55 | 16 | 2 | / | 4-14 | 20 | 105 | 75 | 55 | / | 16 | 2 | / | 4-14 | 100 | 85 | 276 |
| 25 | 20 | 115 | 85 | / | 65 | 16 | 2 | / | 4-14 | 25 | 115 | 85 | 65 | / | 16 | 2 | / | 4-14 | 100 | 85 | 276 | |
| 32 | 25 | 140 | 100 | / | 78 | 18 | 2 | / | 4-18 | 32 | 140 | 100 | 78 | / | 18 | 2 | / | 4-18 | 115 | 100 | 285 | |
| 40 | 32 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 40 | 150 | 110 | 85 | / | 18 | 3 | / | 4-18 | 120 | 110 | 292 | |
| 50 | 40 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 50 | 165 | 125 | 100 | / | 20 | 3 | / | 4-18 | 135 | 120 | 370 | |
| 65 | 50 | 185 | 145 | / | 120 | 20 | 3 | / | 4-18 | 65 | 185 | 145 | 120 | / | 20 | 3 | / | 4-18 | 140 | 130 | 375 | |
| 80 | 65 | 200 | 160 | / | 135 | 20 | 3 | / | 8-18 | 80 | 200 | 160 | 135 | / | 20 | 3 | / | 8-18 | 160 | 135 | 373 | |
| 100 | 80 | 220 | 180 | / | 155 | 22 | 3 | / | 8-18 | 100 | 220 | 180 | 155 | / | 22 | 3 | / | 8-18 | 170 | 160 | 513 | |
| 125 | 100 | 250 | 210 | / | 185 | 22 | 3 | / | 8-18 | 125 | 250 | 210 | 185 | / | 22 | 3 | / | 8-18 | 190 | 190 | 560 | |
| 150 | 125 | 285 | 240 | / | 210 | 24 | 3 | / | 8-23 | 150 | 285 | 240 | 210 | / | 24 | 3 | / | 8-23 | 205 | 195 | 570 | |
| 200 | 150 | 340 | 295 | / | 265 | 26 | 3 | / | 12-23 | 200 | 340 | 295 | 265 | / | 26 | 3 | / | 12-23 | 240 | 230 | 717 | |
| 250 | 200 | 405 | 355 | / | 320 | 30 | 3 | / | 12-26 | 250 | 405 | 355 | 320 | / | 30 | 3 | / | 12-26 | 350 | 320 | 940 | |
| 300 | 250 | 460 | 410 | / | 375 | 30 | 4 | / | 12-26 | 300 | 460 | 410 | 375 | / | 30 | 4 | / | 12-26 | 350 | 320 | 980 | |
|
A41H-25 A41Y-25P A41Y-25R KA41Y-25 KA41Y-25P |
20 | 15 | 105 | 75 | / | 55 | 16 | 2 | / | 4-14 | 20 | 105 | 75 | 55 | / | 16 | 2 | / | 4-14 | 100 | 85 | 276 |
| 25 | 20 | 115 | 85 | / | 65 | 16 | 2 | / | 4-14 | 25 | 115 | 85 | 65 | / | 16 | 2 | / | 4-14 | 100 | 85 | 276 | |
| 32 | 25 | 140 | 100 | / | 78 | 18 | 2 | / | 4-18 | 32 | 140 | 100 | 78 | / | 18 | 2 | / | 4-18 | 115 | 100 | 285 | |
| 40 | 32 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 40 | 150 | 110 | 85 | / | 18 | 3 | / | 4-18 | 120 | 110 | 292 | |
| 50 | 40 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 50 | 165 | 125 | 100 | / | 20 | 3 | / | 4-18 | 135 | 120 | 370 | |
| 65 | 50 | 185 | 145 | / | 120 | 22 | 3 | / | 8-18 | 65 | 185 | 145 | 120 | / | 20 | 3 | / | 4-18 | 140 | 130 | 375 | |
| 80 | 65 | 200 | 160 | / | 135 | 24 | 3 | / | 8-18 | 80 | 200 | 160 | 135 | / | 20 | 3 | / | 8-18 | 160 | 135 | 373 | |
| 100 | 80 | 230 | 190 | / | 160 | 24 | 3 | / | 8-23 | 100 | 220 | 180 | 155 | / | 20 | 3 | / | 8-18 | 170 | 160 | 513 | |
| 125 | 100 | 270 | 220 | / | 188 | 28 | 3 | / | 8-26 | 125 | 250 | 210 | 185 | / | 22 | 3 | / | 8-18 | 190 | 190 | 560 | |
| 150 | 125 | 300 | 250 | / | 218 | 30 | 3 | / | 8-26 | 150 | 285 | 240 | 210 | / | 24 | 3 | / | 8-23 | 205 | 195 | 570 | |
| 200 | 150 | 360 | 310 | / | 278 | 34 | 3 | / | 12-26 | 200 | 340 | 295 | 265 | / | 26 | 3 | / | 12-23 | 240 | 230 | 717 | |
| 250 | 200 | 425 | 370 | / | 332 | 36 | 3 | / | 12-30 | 250 | 405 | 355 | 320 | / | 30 | 3 | / | 12-26 | 350 | 320 | 940 | |
| 300 | 250 | 485 | 430 | / | 390 | 40 | 4 | / | 16-30 | 300 | 460 | 410 | 375 | / | 30 | 4 | / | 12-26 | 350 | 320 | 980 | |
|
A41H, -40 A41Y-40P A41Y-40R KA41Y-40 KA41Y-40P |
20 | 15 | 105 | 75 | 51 | 55 | 16 | 2 | 4 | 4-14 | 20 | 105 | 75 | 55 | / | 16 | 2 | / | 4-14 | 100 | 85 | 276 |
| 25 | 20 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 25 | 115 | 85 | 65 | / | 16 | 2 | / | 4-14 | 100 | 85 | 276 | |
| 32 | 25 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 32 | 140 | 100 | 78 | / | 18 | 2 | / | 4-18 | 115 | 100 | 285 | |
| 40 | 32 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 40 | 150 | 110 | 85 | / | 18 | 3 | / | 4-18 | 120 | 110 | 292 | |
| 50 | 40 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 50 | 165 | 125 | 100 | / | 20 | 3 | / | 4-18 | 135 | 120 | 370 | |
| 65 | 50 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 65 | 185 | 145 | 120 | / | 20 | 3 | / | 4-18 | 140 | 130 | 375 | |
| 80 | 65 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 80 | 200 | 160 | 135 | / | 20 | 3 | / | 8-18 | 160 | 135 | 373 | |
| 100 | 80 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 100 | 220 | 180 | 155 | / | 22 | 3 | / | 8-18 | 170 | 160 | 513 | |
| 125 | 100 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-26 | 125 | 250 | 210 | 185 | / | 22 | 3 | / | 8-18 | 190 | 190 | 560 | |
| 150 | 125 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 150 | 285 | 240 | 210 | / | 24 | 3 | / | 8-23 | 205 | 195 | 570 | |
| 200 | 150 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 200 | 340 | 295 | 265 | / | 26 | 3 | / | 12-23 | 240 | 230 | 717 | |
| 250 | 200 | 450 | 385 | 313 | 345 | 42 | 3 | 4.5 | 12-34 | 250 | 405 | 355 | 320 | / | 30 | 3 | / | 12-26 | 350 | 320 | 940 | |
| 300 | 250 | 515 | 450 | 364 | 408 | 46 | 4 | 4.5 | 16-34 | 300 | 460 | 410 | 375 | / | 30 | 4 | / | 12-26 | 350 | 320 | 980 | |
|
A41H-64 A41Y-64 A41Y-64P A41Y-64R |
20 | 15 | 130 | 90 | 51 | 68 | 20 | 2 | 4 | 4-18 | 20 | 105 | 75 | 55 | 51 | 16 | 2 | 4 | 4-14 | 100 | 95 | 268 |
| 25 | 20 | 140 | 100 | 58 | 78 | 22 | 2 | 4 | 4-18 | 25 | 115 | 85 | 65 | 58 | 16 | 2 | 4 | 4-14 | 100 | 95 | 268 | |
| 32 | 25 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 32 | 140 | 100 | 78 | 66 | 18 | 2 | 4 | 4-18 | 115 | 105 | 279 | |
| 40 | 32 | 170 | 125 | 76 | 95 | 24 | 3 | 4 | 4-23 | 40 | 150 | 110 | 85 | 76 | 18 | 3 | 4 | 4-18 | 135 | 115 | 330 | |
| 50 | 40 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 50 | 165 | 125 | 100 | 88 | 20 | 3 | 4 | 4-18 | 160 | 125 | 360 | |
| 65 | 50 | 205 | 160 | 110 | 130 | 28 | 3 | 4 | 8-23 | 65 | 185 | 145 | 120 | 110 | 22 | 3 | 4 | 8-18 | 175 | 160 | 503 | |
| 80 | 65 | 215 | 170 | 121 | 140 | 30 | 3 | 4 | 8-23 | 80 | 200 | 160 | 135 | 121 | 22 | 3 | 4 | 8-18 | 175 | 160 | 498 | |
| 100 | 80 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 100 | 235 | 190 | 160 | 150 | 24 | 3 | 4.5 | 8-23 | 190 | 180 | 530 | |
| 150 | 100 | 345 | 280 | 204 | 240 | 38 | 3 | 4.5 | 8-34 | 150 | 300 | 250 | 218 | 204 | 30 | 3 | 4.5 | 8-26 | 280 | 260 | 657 | |
|
A41H-100 A41Y-100 A41Y-100P A41Y-100R |
20 | 15 | 130 | 90 | 51 | 68 | 22 | 2 | 4 | 4-18 | 20 | 105 | 75 | 55 | 51 | 16 | 2 | 4 | 4-14 | 100 | 95 | 268 |
| 25 | 20 | 140 | 100 | 58 | 78 | 24 | 2 | 4 | 4-18 | 25 | 115 | 85 | 65 | 58 | 16 | 2 | 4 | 4-14 | 100 | 95 | 268 | |
| 32 | 25 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 32 | 140 | 100 | 78 | 66 | 18 | 2 | 4 | 4-18 | 115 | 105 | 279 | |
| 40 | 32 | 170 | 125 | 76 | 95 | 26 | 3 | 4 | 4-23 | 40 | 150 | 110 | 85 | 76 | 18 | 3 | 4 | 4-18 | 135 | 115 | 330 | |
| 50 | 40 | 195 | 145 | 88 | 112 | 28 | 3 | 4 | 4-26 | 50 | 165 | 125 | 100 | 88 | 20 | 3 | 4 | 4-18 | 160 | 125 | 360 | |
| 65 | 50 | 220 | 170 | 110 | 138 | 32 | 3 | 4 | 8-26 | 65 | 185 | 145 | 120 | 110 | 22 | 3 | 4 | 8-18 | 175 | 160 | 503 | |
| 80 | 65 | 230 | 180 | 121 | 148 | 34 | 3 | 4 | 8-26 | 80 | 200 | 160 | 135 | 121 | 22 | 3 | 4 | 8-18 | 175 | 160 | 498 | |
| 100 | 80 | 265 | 210 | 150 | 172 | 38 | 3 | 4.5 | 8-30 | 100 | 235 | 190 | 160 | 150 | 24 | 3 | 4.5 | 8-23 | 190 | 180 | 530 | |
| 150 | 100 | 355 | 290 | 204 | 250 | 46 | 3 | 4.5 | 12-34 | 150 | 300 | 250 | 218 | 204 | 30 | 3 | 4.5 | 8-26 | 280 | 260 | 657 |
四、彈簧微啟封閉式安全閥 訂貨須知
訂貨時請?zhí)顚憽兑?guī)格書》或注明以下內容：
1、若訂貨前未選定型號，請向我們提供使用參數:1.公稱通徑，2.流體性質（包括公稱壓力、溫度、粘度或酸堿性），3.閥體、閥芯材料。
2、若已經由設計單位選定我公司的彈簧微啟封閉式安全閥產品型號，請按型號直接向我司訂購；
